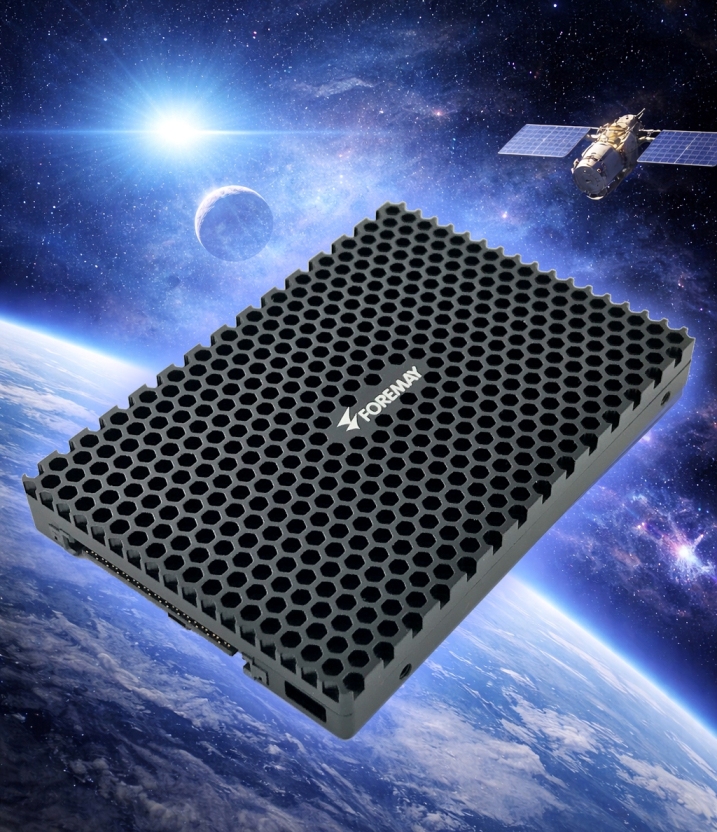

The Foremay SC199 Family represents the next generation of
ruggedized solid-state drives (SSDs),
engineered with advanced
radiation-hardening technologies for
mission-critical applications. These
drives are optimized to perform
reliably across the full spectrum of
environments—from terrestrial systems
to LEO, MEO, GEO, HEO, and deep-space
missions.
Space and military electronics face a triple-threat of Total
Ionizing Dose (TID), Single Event
Effects (SEE), and Internal
Electrostatic Discharge (IESD). While
standard industrial SSDs often fail
within months of orbital exposure,
Foremay’s InterStellar™ utilizes a
Graded-Z shielding architecture
combining its patent-pending and
proprietary technologies.
Foremay's InterStellar™ solution, including LEO orbit radiation
hardening, effectively slows protons
and captures secondary neutrons,
reducing a raw 10,000 krad exposure to
a manageable 500 krad
threshold—ensuring hardware integrity
across the South Atlantic Anomaly
(SAA) and beyond. It also provides an
effective barrier against the "Killer
Electrons" of the outer Van Allen
belts and secondary Bremsstrahlung
radiation.
Furthermore, the architecture significantly increases the Total
Ionizing Dose (TID) testing rating and
LET (Linear Energy Transfer) threshold
to resist and tolerate extreme
radiations caused by Solar Particle
Energy (SPE) and Galactic Cosmic Rays
(GCR) in outer space and deep space.
This makes it the premier choice for
Single Event Effects (SEE) Immune
Storage in the final frontier.
Beyond physical armor, the InterStellar™ features Foremay’s
Interstellar AI-Driven Block
Management (IABM™). This advanced
firmware utilizes machine learning to
create a real-time "Radiation Risk
Map." By monitoring Bit Error Rate
(BER) and predictive sensor data, this
high-reliability SSD for defense and
space proactively migrates
mission-critical data away from "hot
zones" struck by high-energy heavy
ions.
Coupled with a radiation hardened electronics controller and
Triple Modular Redundancy (TMR), the
drive remains immune to Single Event
Latch-ups (SEL), providing a level of
Single Event Effects (SEE) mitigation
previously unavailable in standard
form factors.
SC199 Hi-Rel ™ Series, typical
specifications
SC199 Hi-Rel series are Radiation
Hardened Space Grade SSD drives for
mission critical Terrestrial, Aerospace,
Outer Space and Deep Space
applications.
Operating
temperature: from -40 ~ +85°C to -55
~ +125°C
|
Form
Factor
|
R/W
Speed, Max. (MB/s)
|
Capacity
(GB)
|
Optional Features
|
|
2.5”
SATA III
|
550/500
|
30 ~
16,000
|
S1, S2, S3, HE, CC, SC, WP,OP
|
|
2.5”
SATA II
|
260/260
|
30 ~
16,000
|
S1, S2, S3, HE, CC, SC, WP
|
|
1.8”
micro SATA III
|
550/500
|
30
~ 2,000
|
S1, HE, CC
|
|
1.8”
micro SATA II
|
260/260
|
30
~ 2,000
|
S1, S2, S3, HE, CC, WP
|
|
1.8”
SATA
|
260/260
|
30
~ 1,000
|
S1, S2, HE, CC
|
|
U.2
(2.5" NVMe)
|
1,600/1,500
|
1
TB
~ 16 TB
|
S1, S2, S3, HE, CC, SC
|
|
3U
VPX
|
3.800/3,100
|
1
TB
~ 16 TB
|
S1, HE, CC
|
|
2.5
IDE / PATA
|
100/80
|
30
~ 1,000
|
S1, S2, S3, HE, CC, WP
|
|
1.8”
IDE / PATA
|
100/80
|
30
~ 256
|
S1, S2, HE, CC
|
|
CompactFlash |
90/80 |
30 ~
256
|
S1,
HE, CC |
| CFast
II |
300/200 |
30
~ 256
|
S1,
HE, CC |
Optional feature code:
S1:
Type-I secure erase, software or
firmware based secure erase
S2:
Type-II secure erase, hardware
triggered secure erase
S3:
Type-III secure erase, self-destroy
secure erase
HE:
Hardware based encryption
OP:
TCG-Opal
WP:
Write protect (read only)
Please
contact a Foremay's sales
representative if your required
special feature is not listed here. We
can design and build a customized
product for you.
*
